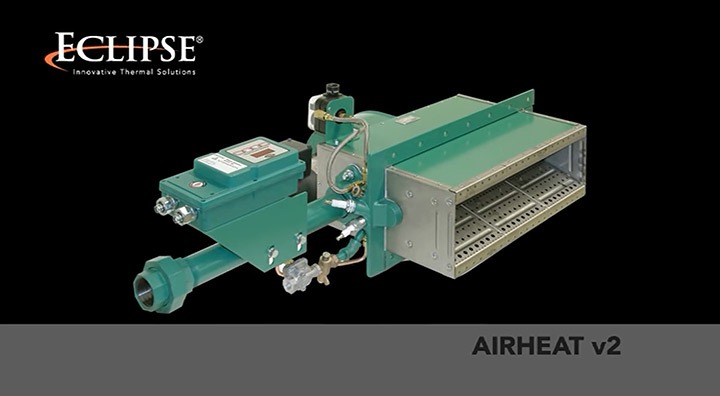

Honeywell Eclipse AH Air Heating Burner v2

Honeywell Eclipse AH Air Heating Burner v2

  • Inputs up to 1,000,000 Btu/hr./Linear Foot (962 kW/m)
  • Turndown: 40:1
  • Max. process temperature: 1500°F (815°C)
  • Fuels: natural gas, propane and butane.
  • Low CO emissions. Compact modular design. Robust, reliable performance.

Description

Application

Honeywell Eclipse AirHeat v2 Burners are ideal for generating a large volume of clean hot air as packaged line burners. Applications include ovens, dryers, fume incinerators, and similar industrial equipment. In addition, the AirHeat v2 burners can also be ordered without a blower for use in re-circulating air applications. In summary, these burners provide simple, reliable operations, plus lower CO emissions than other competitive air heating burners.

All models feature an integral combustion air blower mounted on the burner’s steel case. By supplying the correct air volume and pressure to the burner, this blower allows a stable operation over a wide range of duct velocities without the need to install a profile plate around the burner.

Technical Information

Ask us for engineering or product support to configure your burner.

We help select the burner model, features, and options for your application. Items such as brackets are available for slot firing or duct mounting and flanges are available for continuous flange mounting. Right hand or left-hand gas piping can be supplied with BSP or NPT connections. A reduced port fuel control valve can be supplied with a variety of control motor and linkage options. Ignition can be by direct spark or by spark ignited pilot. Flame rod flame supervision can be from either or both ends. Several air flow switches are also available.

Eclipse AirHeat AH Burner v2 available sizes:

AH0050 Burner 6 inches in length, Max. input 500,000 Btu/hr
AH0100 Burner 12 inches or 1.0 foot in length, Max. input 1,000,000 Btu/hr
AH0150 Burner 18 inches or 1.5 foot in length, Max. input 1,500,000 Btu/hr
AH0200 Burner 24 inches or 2.0 feet in length, Max. input 2,000,000 Btu/hr
AH0250 Burner 30 inches or 2.5 feet in length, Max. input 2,500,000 Btu/hr
AH0300 Burner 36 inches or 3.0 feet in length, Max. input 3,000,000 Btu/hr
AH0350 Burner 42 inches or 3.5 feet in length, Max. input 3,500,000 Btu/hr
AH0400 Burner 48 inches or 4.0 feet in length, Max. input 4,000,000 Btu/hr

Eclipse AirHeat v2 Burner Tee configurations and multiple staged rows available on request.

In addition, the Burner Tee models are: AH0300T, AH0350T, AH0400T, AH0450T, AH0500T, AH0550T, AH0600T, AH0650T, AH0700T, AH0750T, AH0800T, AH0850T and AH0900T. In summary, as the model number get larger, these burners respectively increase with capacity and size for your application.

Technical Documentation

Download PDF files:

Eclipse AirHeat v2 Brochure

Eclipse AirHeat AH v2 Burner Data Sheet

Eclipse AirHeat AH v2 Burners Technical Info

Eclipse AirHeat AH v2 Burner Operating Instructions

Spare Parts

Download Spare Part PDF files:

Eclipse AH0050 Spare Parts List

Eclipse AH0100 Spare Parts List

Eclipse AH0150 Spare Parts List

Eclipse AH0200 Spare Parts List

Eclipse AH0250 Spare Parts List

Eclipse AH0300 Spare Parts List

Eclipse AH0350 Spare Parts List

Eclipse AH0400 Spare Parts List
