Dresser Roots Series B3 Rotary Meter
- continuous and accurate gas measurement
- 13 sizes of rotary meters
- Temperature: -40°F to +140°F (-40°C to +60°C)
Fox Thermal Model FT1 Flow Meter
- Measures process gas flow rate/total and temperature
- Insertion probes: for 1.5″ to 70″ pipes
-
Equipped with the DDC-Sensor™ (Direct Digitally Controlled)
-
Gas-SelectX® gas selection menu. Choose from available list of gases/gas mixes to measure flow. NIST-traceable calibration
-
One standard 4 to 20mA output proportional to mass flow rate; HART communication option
-
One output is selectable for pulse/alarm, RS485 Modbus RTU, or BACnet MS/TP
-
Optional on-board display and configuration panel
Fox Thermal Model FT2A Flow Meter
-
Measures: Mass Flow Rate and Temperature
-
No. of 4 to 20 mA outputs: Two
-
Pulse output: One isolated digital output that can be used for frequency or alarm
-
Display: Standard, LCD, 2 line X 16 character backlit: show flow rate, total, temperature, elapsed time, alarms
-
Communications: Standard USB port, optional BACnet MS/TP, RS485 Modbus, Profibus-DP, DeviceNet& Ethernet Modbus TCP
-
Approvals: FM and FMc approved for Class I, II, III, Division 2, Groups A, B, C, D, E, F, G, T4 hazardous locations; NEMA 4X approved; CE approved; Remote NEMA 4X electronics enclosure with explosion proof sensor j-box
Fox Thermal Model FT3 Flow Meter
-
Measures: Mass Flow Rate and Temperature
-
No. of 4 to 20 mA outputs: Two
-
Pulse output: One isolated digital output that can be used for frequency or alarm
-
Display: Optional, LCD, 2 line X 16 character backlit: show flow rate, total, elapsed time, process gas temperature and alarms
-
Communications: A USB connection is standard (free FT3 View™ Software); Optional HART and RS485 Modbus
-
Safety approvals: CE, FM/FMc, ATEX and IECEx approved
Fox Thermal Model FT4A Thermal Flow Meter
- Measures process gas flow rate/total and temperature
- Insertion probes: for 1.5″ to 70″ pipes
- Equipped with the 2nd Generation DDC-Sensor™ (Direct Digitally Controlled)
- Gas-SelectX® expanded gas selection menu. Choose from available list of gases/gas mixes to measure flow. NIST-traceable calibration
- One standard 4-20mA output proportional to mass flow rate; HART communication option
Honeywell Kromschroder VMO Measuring Orifice
- For use as a measuring or restricting orifice
- Can be combined with valVario valves and regulators
- Air and gas flow rate diagrams to facilitate configuration
- Easy installation thanks to flanges with internal thread
- Replaceable aluminium washers for optimal adjustment to local operating conditions

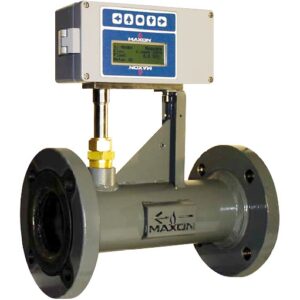

Honeywell Maxon SmartLink Meter
- Precise, repeatable mass flow measurement for fuel, air and combustion streams
- Displays instantaneous standard rate and totalized flow without calculations
- Advanced temperature compensation extends accuracy over wider ranges of fluid temperatures
- Thermal mass flow technology provides reliable measurements with no moving parts
- Thermal mass flow metering provides outstanding accuracy over a wide turndown range
- and much more
