Pietro Fiorentini Governor 10 PSIG Dual Cut

  • CSA Certified to ANSI Z21.80A2005
  • 2 stage out for added Safety
  • Two stage regulation for Over Pressure Protection
  • Integral Vent Limiter
  • CSA approved External Vent Limiter – no vent line required
  • Available pipe sizes: 1/2″ to 4″ NPT
Buy Now

Description

The Pietro Fiorentini ½” – 4″ Governor 10 PSIG Dual Cut (DC) regulators comply with and are certified to CSA 6.22a-2005 and ANSI Z21.80a-2005 for 10 PSIG inlet applications.  The Pietro Fiorentini Governor 10 PSIG DC design incorporates an integral vent limiter.  To ensure the installation complies with CSA 6.22a-2005 and ANSI Z21.80a -2005, the vent cap should be left in place and at no time should any restriction or plug be installed in the vent cap of the regulator.

Pietro Fiorentini Governor Dual Cut Regulators

When using an external vent limiter, the flat top of the vent limiter must always be facing up, with the threads facing down, so it operates properly.  The Governor 10 PSIG DC operates as a 2 stage regulator. The first regulator is the thermostat that regulates the pressure to 1.7 PSIG and should not be adjusted.  The downstream regulator, regulates the pressure to your required outlet pressure. If the worker regulator fails, the monitor regulator takes over at a safe pressure of.1.7 PSIG.  This keeps the operating set point below the CSA required 2 PSIG limit.

  • CSA Certified 6.22a-2005 ANSI Z21.80A2005 Class I for outlet pressures up to 1 PSIG and inlet pressures up to 10 PSIG
  • CSA Certified 6.22a-2005 ANSI Z21.80A2005 Class II for outlet pressures up to 1 PSIG and inlet pressures up to 10 PSIG

Ask us for engineering or product support.
——————————————————————
Governor 10 PSIG Line Pressure Gas Regulators
Pietro Fiorentini – F31051 DC-10-7-BV VL CAP, 10 PSIG Governor 1/2″ NPT Low Capacity
Pietro Fiorentini – F31052 DC-10-7-BV VL CAP, 10 PSIG Governor 3/4″ NPT Low Capacity
Pietro Fiorentini – F31053 DC-10-7-BV VL CAP, 10 PSI Governor 1″ NPT Low Capacity
Pietro Fiorentini – F31150 DC-10-7-BV VL CAP, 10 PSI Governor 1/2″ NPT High Capcity
Pietro Fiorentini – F31151 DC-10-7-BV VL CAP, 10 PSI Governor 3/4″ NPT High Capcity
Pietro Fiorentini – F31152 DC-10-7-BV VL CAP, 10 PSI Governor 1″ NPT High Capcity
Pietro Fiorentini – F31153 DC-10-7-BV VL CAP, 10 PSI Governor 1-1/4″
Pietro Fiorentini – F31154 DC-10-7-BV VL CAP, 10 PSI Governor 1-1/2″
Pietro Fiorentini – F31155 DC-10-7-BV VL CAP, 10 PSI Governor 2″ NPT

Technical Documentation

Downloads:

Governor 12 page brochure

PF Governor 10 PSIG Installation Manual

Video

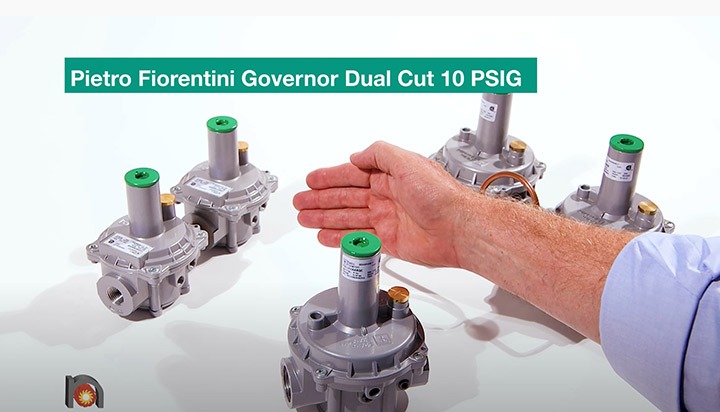

To view video, click on the photo, or here:
